PayGate 4E-40T-W coin operated toilet entry, wall mounted version, without ticket printer

Brief description

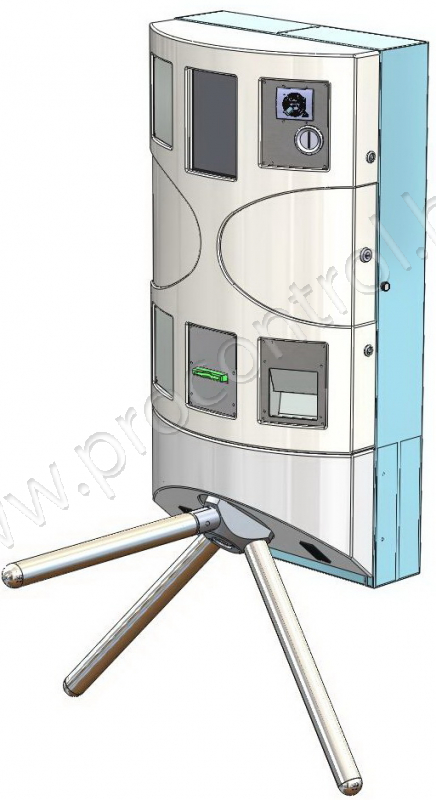

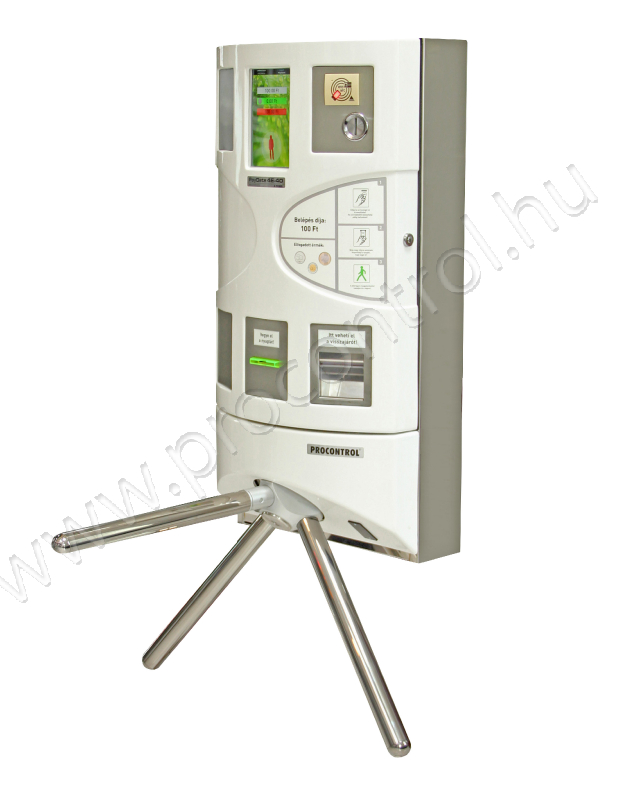

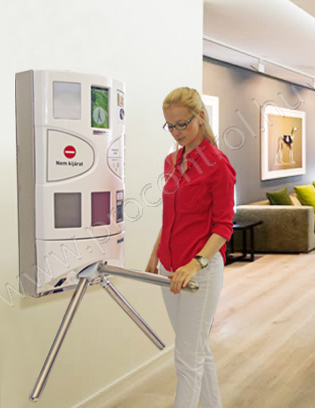

The PayGate 4E-40T-W is a wall mounted turnstile, which is equipped with an automatic paying system.
It is suggested to be used to pay in events, toilets, etc. The Paygate 4E-40T-W is the combination of AutoPay 40 (without ticker printer) and ProxerGate 4E, without pedestal. The coin case capacity allowes at least 1500 passes without the need of the operator, so it can be placed in high traffic areas.

Properties

• - Predetermined entrace fee can be asked with it
• - Accepts different coins, it accepts HUF and EUR also
• - It gives change
• - The device prints receipt and/or ticket with high-performance thermal printer
• - After acquittance of the payment it gives an opening command
• - A non-resettable internal counter counts the number of opening commands
• - Built in Cashlog1: internal accounting records, coin door opening and emptying log, daily and periodic closing documents can be printed or queriable on a web interface .
• - RFID/NFC reader and software.
• - Ethernet, LAN connection

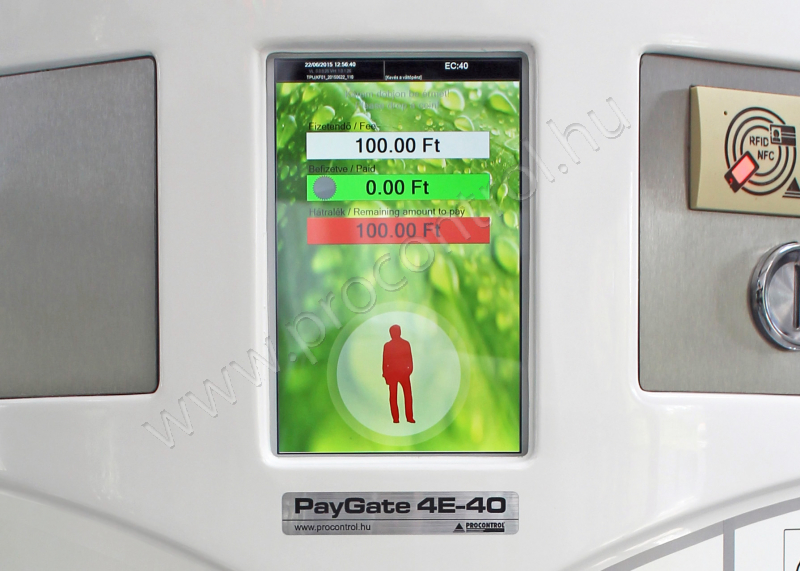

• - 8” touch screen
• - The coins are collected in a storage box; the box can be opened with a key
• - Banknote is not accepted
• - Stainless steel housing 700 x 500 x 240 mm
• - The coin entry is located at eye level, easy to use
• - The coin case capacity allowes at least 1500 passes without the need of the operator, so it can be placed in high traffic areas.

Mentés

Technical Description

Power supply: 12V
Power required: 12V, 10A

Types

PayGate 4E-40T-W: combination of the ProxerGate4E turnstile and the AutoPay40 paying machine without ticket printer, wall mounted
PayGate 4E-40-W: combination of the ProxerGate4E turnstile and the AutoPay40 paying machine with ticket printer
PayGate 4E-40: combination of the ProxerGate4E turnstile and the AutoPay40 paying machine with ticket printer, standing

Options

• Built-in omnidirectional laser barcode and QR code reader, software expansion
• NFC RFID reader to paying, identifying
• Accept banknote, banknote storage for 500 banknotes and integrated software upgrades
• Integrated credit card POS terminal and software upgrades
