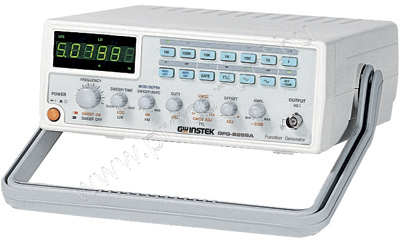

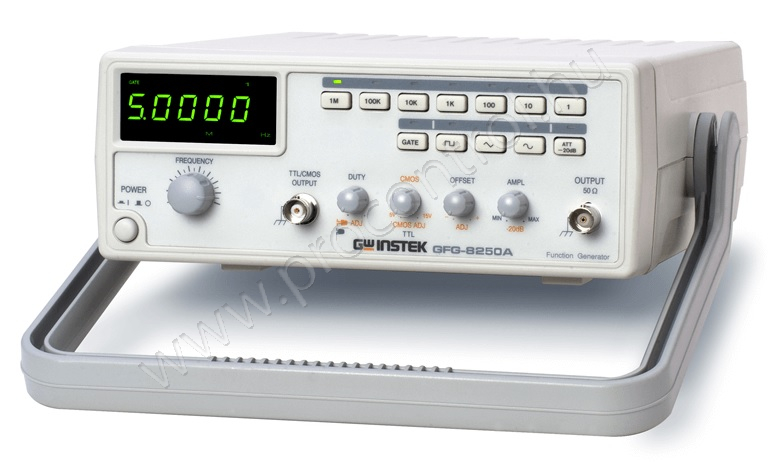

GFG-8250A Analog Function Generator
Kurzbeschreibung
The GFG-8200A product family offers a complete solution in generating signals at the 3MHz/5MHz ranges. All models are embedded with standard functions such as TTL/CMOS/Ramp output, External Voltage Controlled Frequency (VCF), as well as built-in 6-digit counter (except for GFG-8215A).
Further versatility of Logarithmic and Linear sweep is added into GFG-8255A/8219A/8217A, while GCV output feature and AM/FM modulation are available in GFG-8255A/8219A. All these integrated functions and user-friendly operations of the GFG-8200A series are made to accommodate the applications in audio response testing, vibration testing, servo system evaluation, ultra sound application, etc.
Technische Daten:
|
Funktionalität
|
Analóg
|
|
Frequenzumfang (Sinus, Rechteck)
|
0.5Hz ~ 5MHz
|
|
N/A
|
szinusz, négyszög, háromszög
|
|
Amplitude Umfang
|
>10Vpp
|
|
Impedanz
|
50Ω±10%
|
|
Dämpfung
|
-20dB±1dBx6
|
|
DC Offset
|
<-5V ~ >5V
|
|
Aufgabe Kontroll Umfang
|
80% ~ 20%, maximum 1MHz
|
|
Display
|
6 digits LED display
|
|
Harmonisch Verformung der Sinus Wellenform
|
< 1%, 0.5Hz ~ 100kHz
|
|
Linearität der Dreieck-Wellenform
|
> 98%, 0.5Hz ~ 100kHz
> 95%, 100kHz ~ 5MHz
|
|
Symmetrie der Rechteck-Wellenform
|
±2%, 1Hz ~ 100kHz
|
|
CMOS Output Rate
|
4Vpp±1Vpp ~ 14.5Vpp±0.5Vpp állítható
|
|
TTL Output Rate
|
> 3Vpp
|
|
Sweep Wert
|
Maximum 100 : 1
|
|
Sweep Zeit
|
0.5sec ~ 30sec,
|
|
Sweep Mode
|
Lin/Log
|
|
Amplitudenmodulation
|
van
|
|
Frequenz Modulation
|
van
|
|
Frequenz Zähler
|
van
|
Mentés
Technische Beschreibung
Frequency Range: 0.3Hz ~ 3MHz (GFG-8215A/8216A/8217A/8219A)
Frequency Range: 0.5Hz ~ 5MHz (GFG-8250A/8255A)
Waveforms: Sine, Triangle, Square,Ramp, TTL and CMOS Output
External Voltage Controlled Frequency (VCF) Function
Duty Cycle Control with Signal Inversion Capability
Variable DC Offset Control
Two-Step (-20dBx2) and Variable Attenuator
Built-In 6 Digit Counter with INT/EXT Function up to 150MHz(Except GFG-8215A)
INT/EXT AM/FM Modulation (GFG-8219A/8255A)
GCV Output for Synchronization (GFG-8219A/8255A)
LIN/LOG Sweep Mode (GFG-8217A/8219A/8255A)
|
