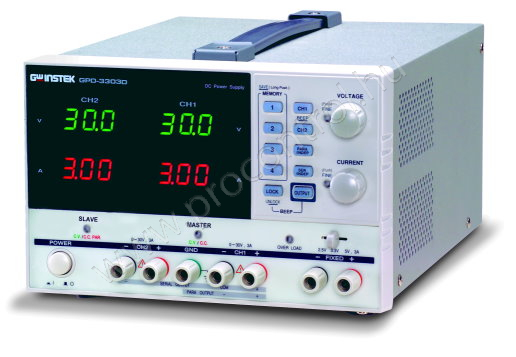

GPD-3303S Programmable Linear DC Power Supplies

Brief description

The GPD-3303S / GPD-3303D series inherits the superior technology and high quality, which GWInstek has established through its long history of power supply design and manufacturing. The GPD-3303S /GPD-3303D series provides 195W output power, three isolated output channels, high resolution output(GPD-3303S ), digital control panel, 4 sets of setup memory, USB remote control, smart cooling fan control, high reliability, and compact size. The GPD-3303S / GPD-3303D establish a new benchmark for economic programmable linear D.C. power supply market segment. The most remarkable feature of this series product with minimum 1mV / 1mA resolution of GPD-3303S, which right fits into the applications needing accurate control of power source.GPD-3303D, another member of the family, is considered a digitally-upgraded version of GPS-3303.

Properties

Three independent output: 30V/3A x 2, 2.5V/3.3V/5V/3A x 1
4 LED displays: 3 digits after decimal point
Minimum resolution: 100mV/10mA
Digital panel control (rotary encoder Switch, rubber key with indicator)
User-friendly operation, coarse/fine volume control
4 sets save/recall
Key-lock
Warning buzzer
Output on/off
Tracking series and parallel mode
Smart cooling fan achieving low noise
Light-weight and compact design
USB interface
PC software
Labview driver

Technical attributes:

Voltage	(CH1 / CH2) 0~30.0V x 2 , (CH3) 2.5V/3.3V/5.0V x 2
Current	(CH1 / CH2) 0~3.0A x 2 , (CH3) 3.0A (Fixed)
Power	195 W
Frequency Range	DC
Weight	7 kg
Dimensions (mm)	210(W) x 130(H) x 265(D)mm
