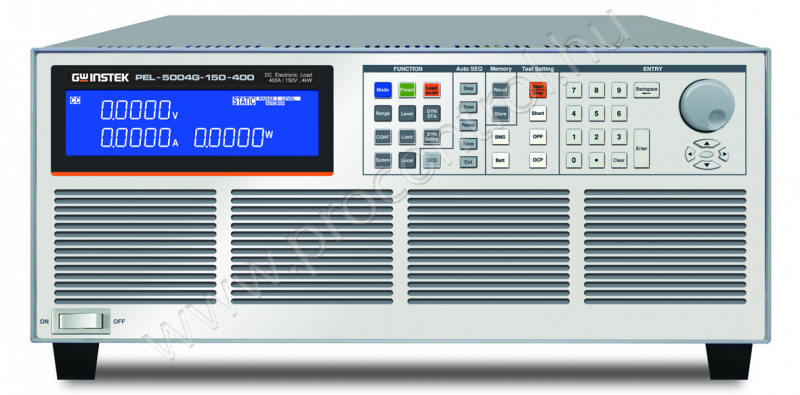

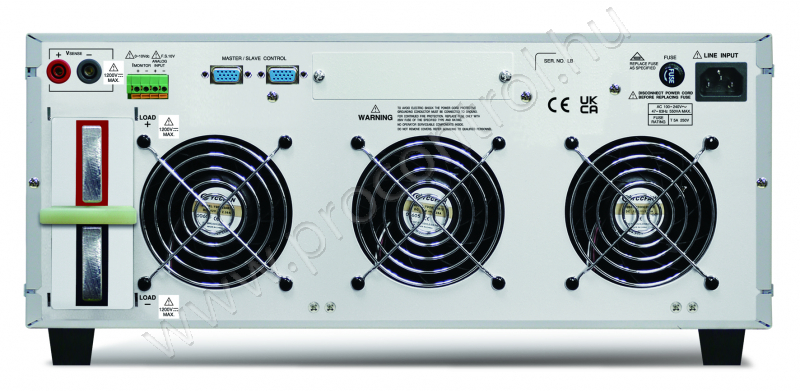

GWInstek PEL-5004G-150-400 DC Elektronikus műterhelés

PEL-5004G-150-400 High Power DC Electronic Load. GW Instek PEL-5000G series single-channel electronic load provides 150V/ 600V/ 1200V models with a power range of 4kW~6kW. PEL-5000G has a total of 9 models featuring different combinations of power, voltage, and current.

Brief description

It can test and verify the specifications of batteries, electric vehicle chargers/charging stations and electric vehicle batteries. PEL-5000G supports parallel connection for same voltage specification and different power models. PEL-5000G can support up to 8 units connected in parallel to provide a maximum power of 48kW.

Properties

  • 5 digital V / A / W Meter can be displayed on Large LCD display simultaneously
  • Flexible CC, CR, CV, CP, CV + CL, CV + PL, Dynamic and short circuit operation modes
  • Not only CC, CR, and CP mode have parallel operation functions, but CV mode also has parallel operation functions
  • Surge Test mode for Capacitive load for current rising transient test
  • Voltage meter display can be configured as polarity positive(”+”)or negative(“-”)
  • Master-slave control is up to 1 Master and 7 Slaves
  • Optional Interface: GPIB, RS232, USB, LAN
  • SEQ Load Mode's programmable function allows for ultra-high-speed step changes from 0.02 to 999000 ms in CC or CP mode
  • Provide battery BMS protection test function
  • Optional 9923 load current waveform generator to provide the battery actual discharge current waveform simulation
  • Built-in test modes include Battery Discharge, BMS, Short circuit, OCP, OPP test modes
  • Turbo mode can withstand up to 1.5 times the current and power electronic load within 2 sec. period, most fit BMS, Short circuit, OCP, OPP test
  • Protection against V, I, W, and C

Options

  • PEL-5004G-150-400 - Normal(N):150V / 400A / 4000W, Turbo(T):150V / 600A / 6000W
  • PEL-5005G-150-500 - N:150V / 500A / 5000W, T:150V / 750A / 7500W
  • PEL-5006G-150-600 - N:150V / 600A / 6000W, T:150V / 900A / 9000W
  • PEL-5004G-600-280 - N:600V / 280A / 4000W, T:600V / 420A / 6000W
  • PEL-5005G-600-350 - N:600V / 350A / 5000W, T:600V / 525A / 7500W
  • PEL-5006G-600-420 - N:600V / 420A / 6000W, T:600V / 630A / 9000W
  • PEL-5004G-1200-160 - N:1200V / 160A / 4000W, T:1200V / 240A / 6000W
  • PEL-5005G-1200-200 - N:1200V / 200A / 5000W, T:1200V / 300A / 7500W
  • PEL-5006G-1200-240 - N:1200V / 240A / 6000W, T:1200V / 360A / 9000W

Functions

  • Voltage/Current Source SMPS Transient Response
  • Voltage Source Current Limit Testing and Battery Emulation for Charger Testing
  • Battery Discharge Capacity
  • Lithium battery BMS Charge and Discharge Protection
  • RnD, Quality Control
  • ATE System
  • Production Testing
